Rotary Disc Harrow
- Home
- Rotary Disc Harrow
Powerful soil cutting for faster smoother field preparation.

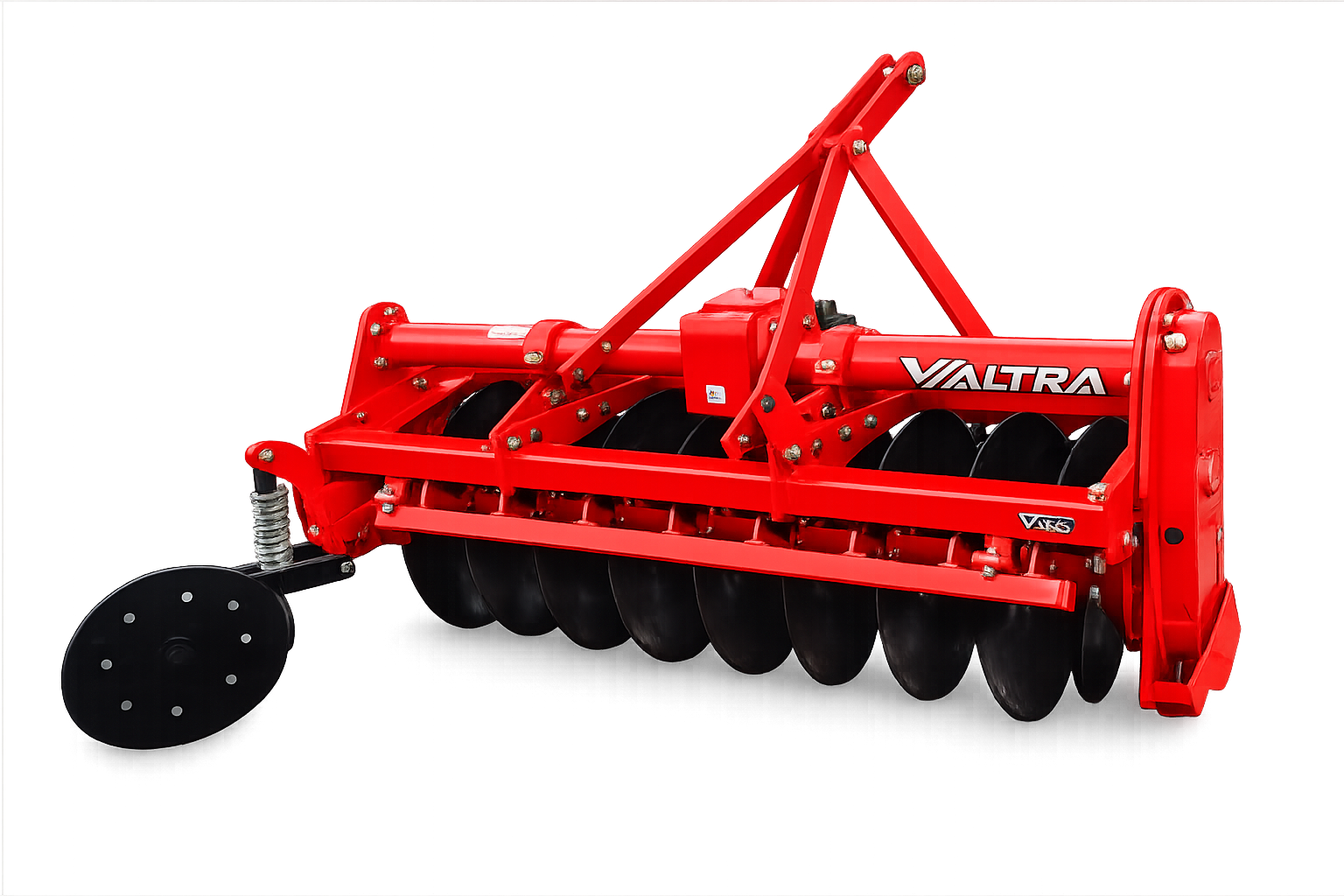

Valtra Rotary Disc Harrow is designed for efficient soil cutting, mixing, and levelling operations. Built with heavy-duty discs and durable bearing hubs, it delivers reliable tillage performance with smooth field operation and reduced tractor load.
- Best in class discs helps to achieve Tillage depth of 4-6 inch.
- High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.
- Best in class seals prevent the entry of mud and water into the bearings and hubs Reliable Performance Better Soil Prepration Higher Productivity.
Technical Specifications
| Model | VA-5D | VA-7D | VA-9D |
|---|---|---|---|
| Tractor Power (HP) | 30-40 | 40-45 | 55-75 |
| Number of Discs | 5 | 7 | 9 |
| Transmission | Gear Drive | Gear Drive | Gear Drive |
| Disc Dia (mm) | 24" | 24" | 24" |
| Disc Spacing | 250 mm/10" | 250 mm/10" | 250 mm/10" |
| Scrapper | Adjustable | Adjustable | Adjustable |
| Gang Axle (mm) | 76mm Tube | 76mm Tube | 76mm Tube |
| Type of Disc | Plain Disc | Plain Disc | Plain Disc |
| Coulter | Spring Loaded | Spring Loaded | Spring Loaded |
| Weight (Kg) | 500 | 570 | 690 |
The company reserves the absolute right to modify the specifications of the machine and components therein without any prior notice.
“Weight is including safety guards & excluding PTO”
