Powerful soil cutting for faster smoother field preparation.

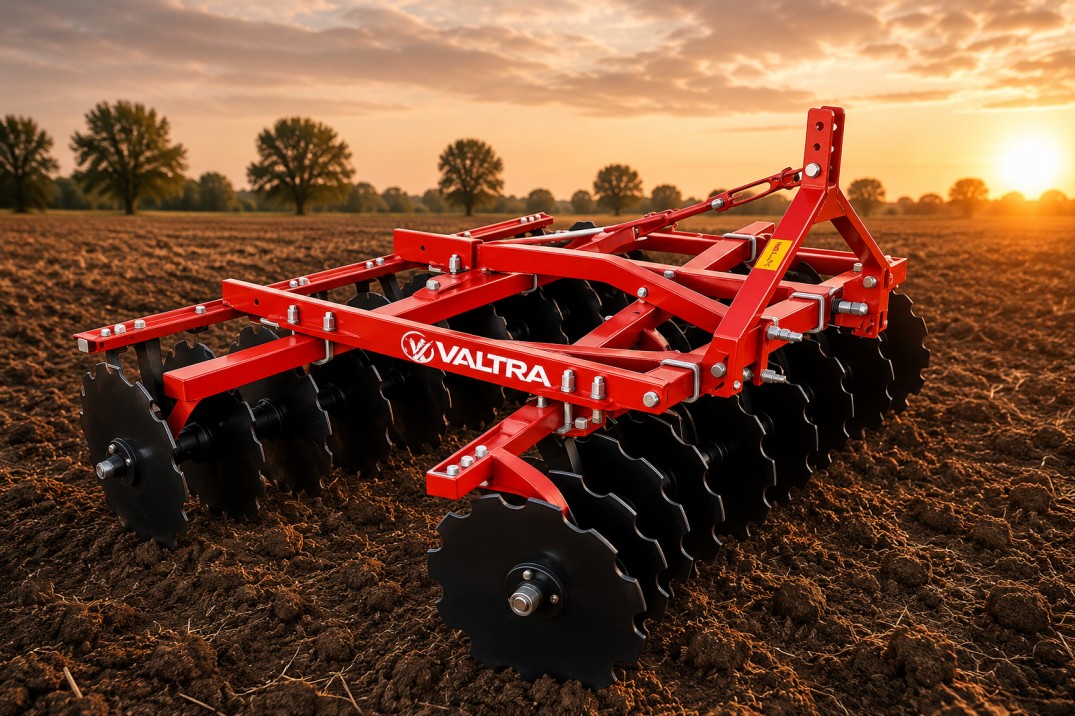

Valtra Disc Harrow is designed for efficient soil cutting, mixing, and leveling operations. Built with heavy-duty discs and durable bearing hubs, it delivers reliable tillage performance with smooth field operation and reduced tractor load.
- Best in class discs helps to achieve Tillage depth of 4-6 inch.
- High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.
- Best in class seals prevent the entry of mud and water into the bearings and hubs Reliable Performance Better Soil Prepration Higher Productivity.
Technical Specifications
| Model | VA0014 | VA0022 |
|---|---|---|
| Tractor Power (HP) | 45-55 | 65-90 |
| Number of Discs | 14 | 22 |
| Type of mounting | CAT II | CAT II |
| Disc Dia (mm) | 560 (22 inch) | 560 (22 inch) |
| Disc Type | Front: Notched, Rear: Plain | Front: Notched, Rear: Plain |
| Disc Spacing (mm) | 224 | 224 |
| Gang Axle (mm) | 32mm (sq Bar) | 32mm (sq Bar) |
| Width of Cut(mm) | 1445 | 2445 |
| Bearing Hub | 4 | 8 |
| Weight (Kg) | 420 | 620 |
The company reserves the absolute right to modify the specifications of the machine and components therein without any prior notice.
“Weight is including safety guards & excluding PTO”
